CONSTRUCTION



HULL:

DECK:

Female molded with anti slip, Polyester/E-glass construction. White as standard. Hexacore or foam coring in deck for the highest obtainable strength/weight ratio & excellent thermal insulation.

MECHANICAL



Stainless steel & Bronze

All stainless steel for the visible parts is to be 316 s/s. Bronze has to be used when the circumstances justify it.

ENGINE FOUNDATIONS

Transom in sandwich construction is provided in each hull. Transom core from closed cell Coosa board.

GENERAL NOTES

The design office must approve all the pipe openings in bulkheads and the structure. The passage into the watertight bulkheads is made through a watertight system.

All pipes are to be installed parallel. Each pipe is labeled to identify the fluid and direction of flow.
The pipes are fixed every 500mm. Direct screwing into the sandwich is forbidden, fixing is achieved using supports integrated and laminated onto the sandwich.
All systems are correctly installed in accordance with classification society rules and accepted marine practice, and pressure tested prior to commissioning.

ENGINES

Owner supplied

ENGINE CONTROLS

Owner supplied with engines

FIRE SYSTEM

In each boat compartment, there are a 2kg powder extinguisher. CO2 extinguisher is to be installed next to the steering console.

HYDROFOIL



STAINLESS STEEL & KEVLAR COMPOSITE

ELECTRICAL

12V DC System:

Breaker panel, Mastervolt or similar.
Custom designed fuse block and distribution board by Multimarine.
Digital Link Battery monitor gauge showing voltage, charge and discharge.
Batteries – Delco type 12V 110 Ah house batteries
(2) Separate 12V 140A batteries: engine start
(4) Separate switches & blocking diode, charging distributor.
All circuit protected with breakers, main switch at breaker panel.
Cigarette lighter adapter plug, Voltmeter, Amp meter, battery test meter, panel lighting, Water gauge
Fully bonded

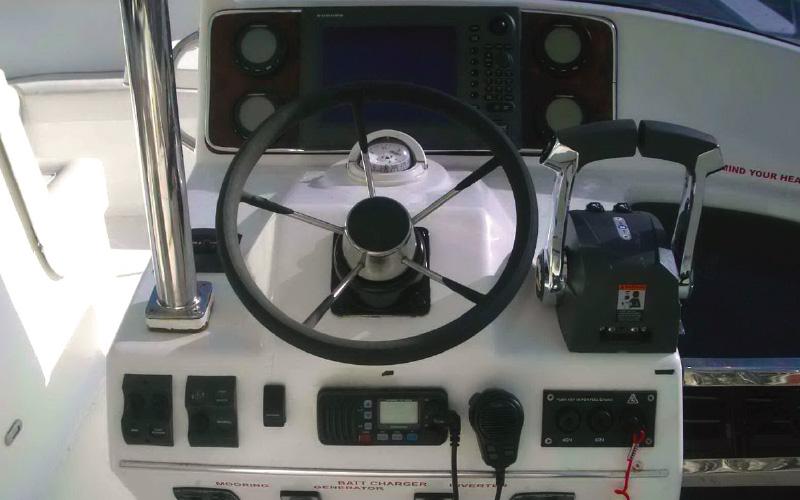

Helm station Electronics, Navigation equipment & Controls:
Steering compass SUUNTO or RITCHIE
Navigation Lights - Aquasignal

All wiring accessible, labeled and in appropriate conduits, spare chases to accommodate future wiring.

COCKPIT

Lighting throughout boat according to plans, dimmers where appropriate. Courtesy lighting.
